20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Shenzhen, Trung Quốc |
| Hàng hiệu: | ESTEL |
| Chứng nhận: | IP55 |
| Số mô hình: | ET6060120A-20U |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 phần trăm |
|---|---|
| Giá bán: | negotiable |
| chi tiết đóng gói: | Vỏ gỗ với pallet |
| Thời gian giao hàng: | 35-45 ngày |
| Điều khoản thanh toán: | T/T, Western Union |
| Khả năng cung cấp: | 3000 |
|
Thông tin chi tiết |
|||
| làm mát: | thông gió tự nhiên | Không gian người dùng: | 20U |
|---|---|---|---|
| Cảm biến: | Cảm biến cửa (Tùy chọn) | Cánh cửa: | Một cửa trước |
| Khớp nối: | Hinge bên trong | Khóa: | Khóa ba điểm chống trộm |
| Làm nổi bật: | Tủ đặt trên sàn ngoài trời thông gió tự nhiên,20U Phòng đựng đồ ngoài trời,Khóa chống trộm ngoài trời |
||
Mô tả sản phẩm

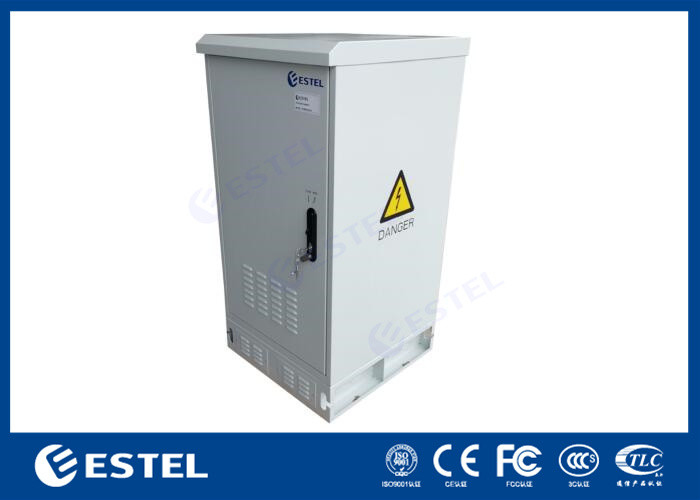

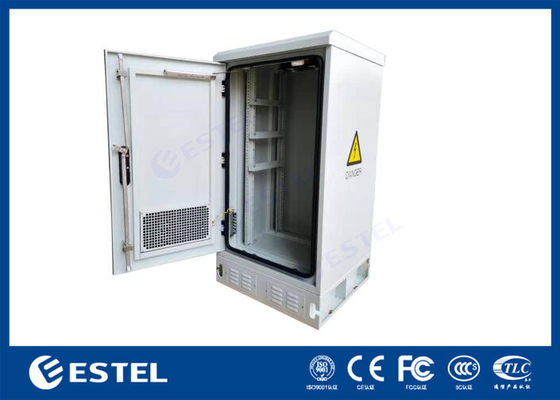

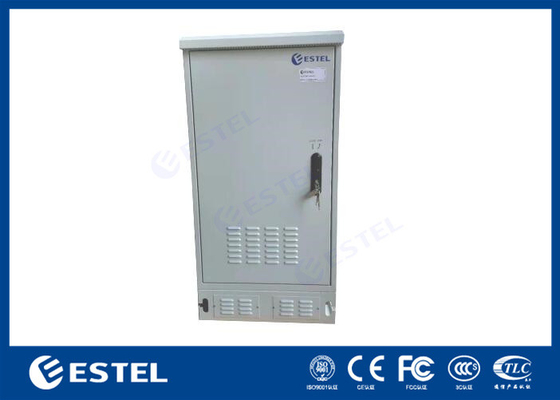

20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System Application:
The outdoor cabinet can protect customer’s equipments from damage and extreme weather conditions.
The cabinet is an ideal solution for physical connections of outdoor telecommunication equipments, power system and batteries.
It can be widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System Technical Parameters:
| Configuration | Item | Technical Parameter |
| Cabinet | Model | ET6060120A-20U |
| Protection Level | IP55 | |
| External Dimension | H1200mm×W600mm×D600mm | |
| Internal Space | 19 inch 20U. | |
| Material | Galvanized steel, single wall without insulation. Wall thickness: 1.2mm. | |
| Coating | Polyester powder coating | |
| Color | RAL7035 | |
| Door | One front door | |
| Lock | Anti-theft three-point locking system | |
| Hinge | Inner hinge | |
| Installation Options | Floor mounted | |
| Cable Routing | Cable in and out from the bottom of cabinet | |
| Others | Door sensor, LED light with switch | |
| Environment | Working Temperature | -40℃ ~+55℃ (+Solar Radiation) |
| Storage Temperature | -40℃~+70℃ | |
| Working Humidity | 5%~95%(No condensation) | |
| Working Altitude | 0~4000 meters | |
20U Outdoor Floor Mounted Cabinet With Natural Ventilation And Anti Theft Lock System Features:
● High protection grade: IP55
● Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock
● Cooling can add Fans or air conditioners, installed on cabinet, with filter, convenient for maintenance, cleaning and replacement
Cabinet Diagram:
